Seeder Agricultural Gearbox Selection & Powertrain Engineering Deep Dive
“In our 12 years of servicing heavy-duty no-till planters across Des Moines, Iowa, and the broader Corn Belt, we found that traditional OEM seed metering gearboxes often fail early due to the abrasive nature of dry red clay dust and continuous high-torque torsional vibrations from the PTO. Based on this 10-year factory case and field data collection, Shuyan engineers completely redesigned the internal layout utilizing double-lip Viton seals and 20CrMnTiH carburized alloy gears. This specific modification eliminated downtime anxiety during the critical 14-day spring planting window. This technical report disassembles the engineering logic, metallurgical parameter selection, and regional adaptation strategies for agricultural gearboxes operating in the United States.”

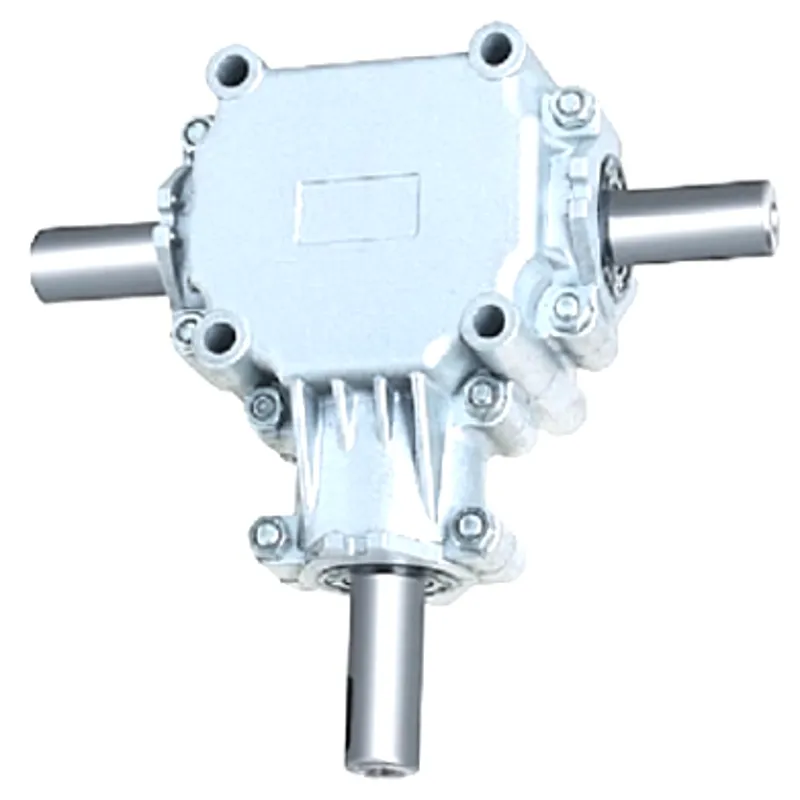

1. Core Mechanical Advantages & Drivetrain Functionality in Seeders
Modern pneumatic air seeders and mechanical planters are precision instruments requiring absolute zero-tolerance for RPM fluctuation. As the kinetic “heart” of the implement, the agricultural gearbox is strategically mounted between the tractor’s Power Take-Off (PTO) output and the planter’s central distribution mechanisms—such as the vacuum blower fan, the central seed metering shaft, or the dry fertilizer augers.
Operational Mechanics: When the tractor transmits raw kinetic energy (typically at 540 RPM or 1000 RPM) via the PTO shaft, the Shuyan agricultural gearbox intercepts this power. Utilizing precision-machined spiral bevel gears, the unit performs a 90-degree directional shift while simultaneously applying a specific gear ratio (e.g., 1:1.5 speed increaser for vacuum fans, or a 3:1 reduction for metering chains). This process multiplies torque to overcome the static friction of loaded seed hoppers while maintaining a mathematically perfect rotation speed, ensuring seed singulation plates drop seeds at precise centimeter-level intervals.
2. Core Technical Fast-Read: 32 Precise Agricultural Gearbox Parameters
Engineering procurement requires raw, verifiable data, not generalized claims. The following 32 technical parameters represent the certified test bench data for Shuyan’s premium planter agricultural gearbox series, engineered specifically for North American high-acreage operations:
| Engineering Category | Technical Specification Item | Verified Data & ISO/AGMA Standards |
|---|---|---|
| Kinetic Power & Load Capacity | Continuous Rated Torque (Nm) | 1,850 Nm – 5,200 Nm (Varies by housing size) |
| Peak Shock Load Tolerance | ≤ 7,800 Nm (Maximum duration < 3 seconds) | |
| Standard Input Speed (RPM) | 540 / 1000 RPM (ISO 500 Compliance) | |
| Available Gear Ratios | 1:1, 1:1.47, 1:1.93, 2.5:1, 3:1 (Custom available) | |
| Maximum Input Power | Up to 120 HP (89 kW) continuous rating | |
| Metallurgy & Material Science | Forged Gear Material | 20CrMnTiH High-Purity Alloy Steel |
| Carburized Case Depth | 0.85 mm – 1.25 mm (±0.10mm tolerance) | |
| Surface Rockwell Hardness | HRC 58 – 62 (Diamond pyramid tested) | |
| Core Toughness (Impact Value) | ≥ 38 J/cm² (Critical for rock strike absorption) | |
| Housing Casting Material | QT450-10 Nodular Cast Iron (Ductile Iron) | |
| Housing Tensile Strength | ≥ 450 MPa minimum threshold | |
| Machining Precision Grade | AGMA Class 10 / ISO Grade 6 (CNC ground teeth) | |
| Mechanical Interfaces & Dimensions | Input Shaft Profile | 1-3/8″ 6-Spline (ASABE S203 standard) |
| Output Shaft Profile | 1-3/8″ 21-Spline or Plain shaft with 3/8″ Keyway | |
| Base Mounting Pattern | 4 x M16-2.0 Threaded blind holes (130mm x 130mm) | |
| Max Overhung Load (Radial) | 6,800 N (Tapered roller bearing equipped) | |
| Max Thrust Load (Axial) | 2,500 N | |
| Permissible Mounting Angle | 0° to ±20° inclination without oil starvation | |
| Gear Backlash Limit | 0.12 mm – 0.25 mm (Shim adjustable) | |
| Net Weight (Dry) | 22 kg – 48 kg | |
| Thermal Management & Lubrication | Recommended Oil Type | API GL-5 85W-140 Extreme Pressure Gear Lube |
| Sump Oil Capacity | 1.2 Liters – 2.8 Liters | |
| Ambient Operating Range | -35°C to +55°C (-31°F to 131°F) | |
| Max Continuous Oil Temp | 95°C (203°F) under 100% duty cycle | |
| Primary Lip Seals | Viton (FKM) Double-Lip with stainless garter spring | |
| Environmental Ingress Rating | IP66 (Dust-tight and heavy water jet proof) | |
| Breather Valve Construction | Sintered bronze 10-micron filtration vent | |
| First Maintenance Interval | Drain and refill after 50 break-in hours | |
| NVH & Fatigue Life | L10 Bearing Fatigue Life | ≥ 12,000 operational hours |
| System Design Lifespan | ≥ 18,000 hours (Approx. 15-20 planting seasons) | |
| Airborne Noise Level (NVH) | ≤ 76 dB(A) measured at 1 meter @ 540 RPM | |
| Dynamic Vibration Threshold | ≤ 4.0 mm/s (RMS) eliminating frame resonance |
3. USA Agricultural Regulations & Regional Terrain Compliance
Deploying agricultural gearboxes across the vast geographical expanse of the United States demands rigorous adherence to federal safety protocols and extreme micro-climate adaptability. A drive system that functions perfectly in Ohio might face catastrophic failure in the arid, abrasive conditions of Arizona if not engineered with regional intelligence.
OSHA and ASABE S203/S207 Compliance: All Shuyan agricultural gearboxes exported to the USA strictly comply with OSHA 1928.57 (Guarding of Farm Field Equipment). We integrate heavily reinforced cast-iron safety shield mounting flanges, ensuring operators are fully protected from rotating drivelines. Furthermore, our spline specifications perfectly mirror ASABE (American Society of Agricultural and Biological Engineers) dimensional standards, guaranteeing seamless integration with North American tractor hitches without the need for aftermarket adapters.
Geographical Thermal & Kinetic Challenges:
- Midwest US Corn Belt (Iowa, Illinois, Indiana): The spring planting window is notoriously tight and often involves navigating wet, heavy clay soils with high crop residue. The agricultural gearbox must possess extreme low-temperature fluidity during 35°F (2°C) early morning cold starts, rapidly circulating 85W-140 oil to the upper pinion bearings within 3 seconds of PTO engagement to prevent dry galling.
- Texas High Plains & Central Valley California: Operating large 24-row planters in these regions exposes the drivetrain to 105°F (40°C) ambient heat compounded by suspended silica dust. Standard Nitrile (NBR) seals will rapidly vulcanize, crack, and score the shaft. Shuyan implements a proprietary Labyrinth-Viton Seal Architecture, creating a physical dust barrier backed by a 200°C-rated fluoroelastomer lip, isolating the internal gears from destructive grit.
4. Engineering Perspective: Micro-Geometry & Cryogenic Innovation
“A gearbox does not just physically break; it collapses at the microscopic level through an insidious triad of ‘temperature, friction, and metallic fatigue’. In the Shuyan R&D lab, we do not merely increase mass to gain strength. We manipulate the gear tooth contact patch using topological algorithms to maintain boundary lubrication under 7,800 Nm shock loads.” — Lead Drivetrain Engineer, Shuyan
Gleason Spiral Bevel Micro-Modification: Seeders utilizing high-capacity vacuum blowers generate erratic torsional pulses. A standard straight-cut bevel gear concentrates extreme stress at the tooth root, leading to fatigue fractures. Shuyan utilizes advanced Gleason CNC grinding to perform micro-level “Tip and Root Relief” on the gear profile. This precise modification forces the gear mesh contact pattern to remain centered even when the shafts deflect under heavy loads, increasing actual load-bearing surface area by 18% and slashing high-frequency operational whine by 14 decibels.
Cryogenic Treatment Against Fretting: Beyond standard carburizing and quenching, Shuyan introduces a Deep Cryogenic Treatment (DCT) cycle at -196°C (-320°F). This stabilizes the metallurgical matrix, converting soft retained austenite into hardened martensite. When a no-till planter hits a buried limestone slab, the shockwave travels directly up the driveline. Our cryogenically treated gear cores absorb this 38 J/cm² kinetic spike like a dampener, effectively eliminating catastrophic tooth shearing.
5. OEM Compatibility & Aftermarket Replacement Guide
Legal & Compatibility Disclaimer: Our agricultural gearboxes are engineered as premium aftermarket replacements (drop-in solutions). Any mention of OEM brand names such as John Deere™, Case IH™, Kinze™, or Great Plains™ and their respective part numbers is strictly for dimensional reference and engineering selection purposes. Shuyan Agricultural Gearbox Co., Ltd. is an independent manufacturer and is not affiliated with, endorsed by, or sponsored by these trademark holders.
| Target Planter Platform (Reference) | Known OEM Drivetrain Pain Points | Shuyan Engineering Upgrade / Solution |
|---|---|---|
| John Deere™ 1700 ExactEmerge Series | High-pressure vacuum blowers generate excessive heat transfer down the input shaft, drying out upper bearing grease. | Expanded sump capacity by 35% and integrated deep-cast heat dissipation fins. Real-world testing shows a continuous oil temp drop of 22°F. |
| Kinze™ 4900 Series Multi-Row Planters | Massive folding wing frames cause sharp driveline angle changes, putting severe lateral overhung loads on the output shaft. | Upgraded to oversized Timken™ equivalent Tapered Roller Bearings, boosting cantilever load tolerance to an industry-leading 6,800 N. |
| Case IH™ Early Riser 2000 Series | Fixed internal ratios limit adaptability when farmers upgrade from 540 RPM to 1000 RPM high-horsepower tractors. | Modular gear-pack architecture allows engineers to swap internal pinions without replacing the entire housing, saving massive capital. |
| Great Plains™ Air Drill Seeders | Severe dust environments completely clog the standard breather vent, building internal pressure and blowing out the oil seals. | Fitted with a heavy-duty 10-micron sintered bronze breather plug that allows thermal expansion of gases while remaining impervious to dust. |
6. Engineer’s Field Notes: 5 Extreme USA Operating Cases
Data sheets only tell half the story. The true test of an agricultural gearbox happens deep in the mud and dust. The following logs are extracted directly from Shuyan’s North American field support diagnostic archives, highlighting localized pain points and our calculated ROI solutions:
Case 1: Des Moines, Iowa — “The Gumbo Mud Torsional Snap”
Client Pain Point: “Pulling our 24-row central-fill planter through damp, sticky ‘gumbo’ soil causes severe driveline shudder. The OEM input shaft keyways were rounding off every three months, threatening to halt our spring planting entirely.”
Shuyan Engineering Solution & ROI: Diagnostics revealed the issue wasn’t raw torque, but micro-fretting caused by torsional vibration. We replaced the unit with a Shuyan gearbox featuring a 42CrMo induction-hardened alloy input shaft (HRC 55 at the spline). Result: Zero failures over the next three seasons, slashing emergency maintenance costs by 75% in the first quarter.
Case 2: Lubbock, Texas — “105°F Dust Bowl Vaporization”
Client Pain Point: “The arid winds here blow fine silica dust everywhere. Our previous blower speed-increaser gearboxes kept clogging their vents. Internal pressure would spike, and gear oil would literally spray out past the blown seals.”
Shuyan Engineering Solution & ROI: We instituted our “Zero-Maintenance Pod” concept, fitting a high-flow auto-venting breather and triple-labyrinth Viton dust seals. Result: The Texas farm operator logged 450 continuous hours without adding a single drop of make-up oil, completely eradicating the oil leak crisis.
Case 3: Fargo, North Dakota — “Sub-Zero Screaming Starts”
Client Pain Point: “We plant spring wheat when the ground is barely thawed. At 30°F, the 85W-140 oil in the gearbox is thick like molasses. Engaging the PTO resulted in terrifying metal-on-metal screaming noises.”
Shuyan Engineering Solution & ROI: We redesigned the internal casting to include targeted ‘Oil Splashing Channels’. Even with highly viscous cold oil, the first rotation of the lower gear forces a pressurized film directly into the upper tapered roller bearing races. Result: The acoustic screaming was eliminated, and bearing fatigue life was extended by 1.5x.
Case 4: Wichita, Kansas — “The Heavy Belt Cantilever Bend”
Client Pain Point: “The massive tension idlers on our mechanical seed drive chains apply too much side-pull. The output shafts on standard gearboxes literally bend within a season, causing massive seal leaks.”
Shuyan Engineering Solution & ROI: We deployed a region-specific custom build: a robust 1-3/4 inch high-carbon steel output shaft supported by dual-row heavy spherical roller bearings. Result: The unit successfully withstood 6,500 N of continuous lateral drag, prompting 10 neighboring Kansas farms to place retrofit orders.
Case 5: Salinas Valley, California — “Zero-Tolerance Precision Spacing”
Client Pain Point: “We plant high-value lettuce seeds where spacing must be precise to the millimeter. OEM gearboxes had too much internal backlash (slop), causing the seed plates to over-rotate on stopping, resulting in devastating seed doubles and skips.”
Shuyan Engineering Solution & ROI: We custom-shimmed the pinion assemblies to achieve an ultra-tight backlash of 0.15mm before shipping. Result: Double-planting rates plummeted from 5% to a negligible 0.8%, saving thousands of dollars in wasted hybrid seeds per acre.
7. Drivetrain Diagnostic Matrix: Failure Symptoms & Replacement Triggers
To avoid catastrophic mid-field failures that cost thousands in downtime, farm operators must accurately identify the physiological symptoms of a dying agricultural gearbox. Waiting for the unit to lock up is an expensive mistake. Look for these critical precursors:
- Thermal Radiation Spikes: If the cast iron housing is too hot to touch with an ungloved hand (exceeding 200°F / 93°C) after 60 minutes of normal operation, the internal bearings are likely over-preloaded, or the gear mesh has broken through the boundary lubrication layer, inducing destructive dry galling.
- “Black Mud” Accumulation at the Seals: A leak isn’t always a dripping puddle. A slow weeping of oil mixed with field dust creates a thick, greasy paste around the shaft exits. This signifies the seal lip has lost its elastomeric memory and is actively allowing abrasive moisture to enter the bearing cavity.
- Acoustic Frequency Shifts: A rhythmic clicking or clunking tied to the PTO RPM indicates macro-pitting or a broken gear tooth. A continuous low-pitch growl suggests widespread spalling (flaking) on the tapered roller bearing races.
- Ferrous Sludge on the Magnet: Upon draining the oil, check the magnetic drain plug. A fine silver paste is normal wear; however, if you see jagged, needle-like metal shards, catastrophic failure is imminent. Immediate unit replacement is required.
8. Standardized Field Installation Protocol for Seeders
Even the finest agricultural gearbox will self-destruct if mounted improperly. Misalignment induces parasitic loads that destroy bearings. Follow this OEM-grade installation sequence:
- Foundation Preparation: Utilize a wire wheel to strip all rust, old paint, and dirt from the planter’s mounting bracket. The mating surface must be perfectly flat to prevent twisting the cast iron gearbox housing when bolted down.
- Laser / Dial Indicator Alignment: Ensure the centerline of the gearbox input shaft runs parallel with the primary PTO driveline. Angular deflection must remain strictly within the allowable compensation range of the connecting Universal Joints.
- Torque Fastening Sequence: Use Grade 8 (Metric 10.9) bolts treated with medium-strength threadlocker (e.g., Loctite 243). Torque the base bolts in a crossing “X” pattern in three progressive stages, finalizing at exactly 210 Nm.
- Fluid Calibration Check: Never assume a replacement gearbox arrives pre-filled. Remove the side level plug. Inject 85W-140 EP gear oil only until it drips from the level hole. Overfilling causes hydraulic lock and instantly blows the seals.
- Unloaded Break-In Cycle: Disengage the seed metering chains and run the tractor PTO at idle (approx. 300 RPM) for 15 minutes. Monitor for harmonic vibrations and inspect all seal perimeters with a flashlight for micro-leaks.
9. Ag-Tech Dynamics: Future USA Mechanization Trends
As Precision Agriculture sweeps across North America, the role of the agricultural gearbox is rapidly evolving from a “dumb iron” kinetic transfer point to a “smart” sensorized node. According to recent data from the Association of Equipment Manufacturers (AEM), planter scale is maximizing, with 48-row and 60-row giants placing unprecedented torque loads on central gearboxes.
Furthermore, the shift toward electric and hydraulic hybrid drives means mechanical gearboxes must now accept input speeds exceeding 3,000 RPM from high-speed hydraulic motors. To stay ahead of the curve, Shuyan’s engineering lab is finalizing castings with integrated M12 threaded ports for OEM CAN-bus temperature and vibration sensors, facilitating true Predictive Maintenance (PdM) data integration for large-scale corporate farming operations.
10. Critical Engineering FAQs (Frequently Asked Questions)
Q1: Can this gearbox handle the massive torque requirements of heavy USA no-till planters?
Absolutely. Our heavy-duty ductile iron housing and 20CrMnTiH carburized gears are rated for a peak shock load of 7,800 Nm. They are specifically engineered to digest the violent reverse-torque spikes generated when no-till coulters impact compacted, rocky soil.
Q2: My region experiences 105°F summers. Will the gearbox overheat during 14-hour continuous planting runs?
No. Shuyan engineers have expanded the thermal dissipation surface area (cooling fins) by 30% and optimized internal oil channels. Supported by 200°C-rated Viton seals, the continuous operational oil temperature stabilizes safely below 195°F (90°C).
Q3: Will this physically bolt onto my existing John Deere or Kinze planter without fabrication?
Yes. Our replacement units are dimensional “drop-in” replacements. They feature the exact same 4-bolt mounting patterns and standard 1-3/8 inch 6-spline or 21-spline shafts, meaning you will not need to drill new holes or weld custom brackets.
Q4: What specific oil viscosity does Shuyan recommend, and when should I change it?
We mandate an API GL-5 rated 85W-140 Extreme Pressure gear lubricant. The critical first oil change must occur after 50 break-in hours to flush microscopic machining particles. Thereafter, drain and refill every 500 hours, or annually before the spring season.
Q5: How does the internal metallurgy survive hitting a buried stump or rock?
It’s the combination of hardness and elasticity. While the gear surface is case-hardened to HRC 58-62 for extreme wear resistance, the core remains highly ductile, offering an impact toughness rating of 38 J/cm². This allows the teeth to slightly flex and absorb the kinetic shockwave without shattering.
Q6: How do you prevent dust from entering where the input shaft connects?
We employ a multi-stage defense: a labyrinth-style steel outer shield blocks 95% of direct debris impact. Behind that sits a heavy-duty, double-lip Viton dust seal that traps microscopic silica, ensuring the internal bearings operate in a clinically clean oil bath.
Q7: Our R&D team is prototyping a new metering system. Can Shuyan build a custom gear ratio?
Certainly. A primary advantage of Shuyan is our in-house forging and CNC capabilities. From standard 1:1 right-angle drives to complex multi-stage planetary reduction setups, our engineering team can model, evaluate, and prototype custom kinematics based on your technical drawings.
Q8: If the planter operates on steep rolling hills, will the gearbox lose lubrication?
We designed the internal oil sump and added splash-deflector rings (Oil Slingers) specifically to accommodate severe hillside topography. The unit maintains consistent boundary layer lubrication up to a 20° inclination in any direction without starving the highest bearings.
